DW763Z-UST

Maintenance-Free Laser Projector

DW763Z-UST

Ultra Short Throw with up to 150 inch screen size

The DW763Z-UST is designed for large screen displays at museum, in education or showroom applications where installation space is a constraint. Features a WXGA (1280 x 800), an amazing 4,000 Ansi Lumens and 12,000:1 contrast ratio for a clear and bright projection. In addition to this, the device is maintenance free, thanks to their lamp less laser light source design, which delivers up to 20,000 hours of operational time. The The DW763Z-UST offers a wide array of connectivity options, including two HDMI, component, composite video, s-video and VGA-in/out, while the embedded 10W audio speaker and multiple audio-in and audio-out ports provide plenty of options for external device connection.
Download Datasheet
Vivitek_DH765Z-UST and DW763Z-UST_Left_Hero

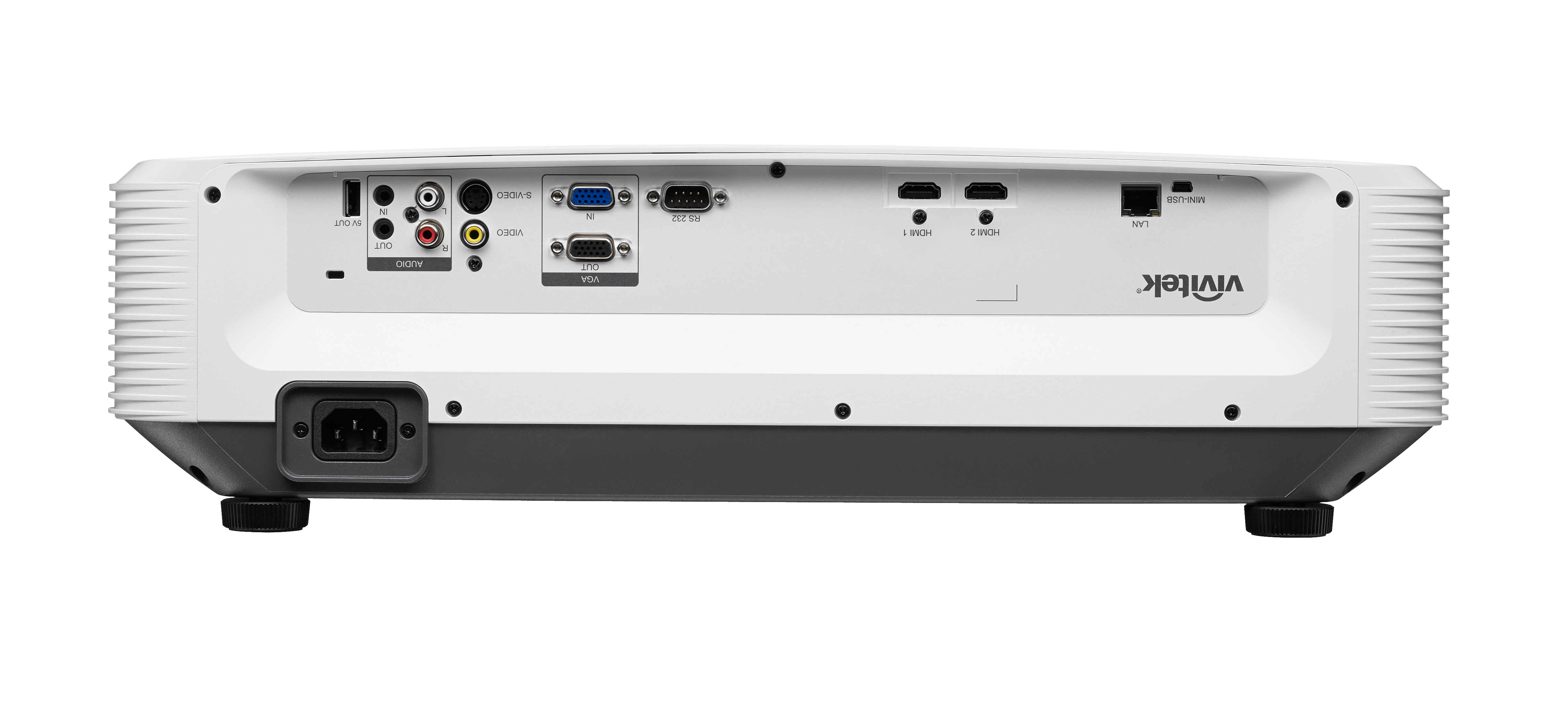

Vivitek_DH765Z-UST and DW763Z-UST_IO
Vivitek_DH765Z-UST and DW763Z-UST_Top
Vivitek_DH765Z-UST and DW763Z-UST
Vivitek_DH765Z-UST and DW763Z-UST_Front
Vivitek_DH765Z-UST and DW763Z-UST_Left_Hero
Vivitek_DH765Z-UST and DW763Z-UST_IO
Vivitek_DH765Z-UST and DW763Z-UST_Right_Back_Hero
Vivitek_DH765Z-UST and DW763Z-UST_Top_Rear
Vivitek_DH765Z-UST and DW763Z-UST_Left_Side
Vivitek_DH765Z-UST and DW763Z-UST_Right_Side

Product Resources

Specifications

DW763Z-UST

Native Resolution
WXGA (1280 x 800)
Brightness
4000 ANSI Lumens
Contrast Ratio
12,000:1
Max. Supported Resolution
WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio
16:10
Lamp Life and Type
Lamp free design. Laser light source last up to 20,000 hours
Display Type
Single chip DLP® Technology by Texas Instruments
Chip Size
0.65” DMD
Throw Ratio
0.24:1
Image Size (Diagonal)
80" – 150"
Projection Distance
4 – 41 cm (from the screen to the projector)
Zoom Ratio
Fixed 1x
Offset
115% from the lens center; 122% from the bottom of the projector
Keystone Correction
Vertical: +/- 30°; Horizontal: +/- 30°
Speakers
10W
Video Compatibility
SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports
VGA-In (15pin D-Sub), HDMI Number of Ports (x2), S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, RS-232, USB A (Power Only), USB miniB (Service)
Dimensions (W x D x H)
509 x 390 x 145 mm
Weight
10.5 kg
Noise Level
31dB / 28dB (Normal / Eco. Mode)
Power
Supply: AC 100-240V, 50/60Hz Consumption: 315W (Eco. Mode), 380W (Normal Mode), <0.5W (Standby)
Remote Control P/N
XX5040005400
Standard Accessories
VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories
Optional wall mount (LT30B-G), Remote Control P/N (XX5040005400), 3D Ready(DLP link, PC+Video), Direct 3D (HDMI 1.4a), 3D Mandatory Formats supported (top/bottom, right/left, frame sequential), Keypad lock

Product Accessories

Accessories

Vivitek__DW763Z-UST_DH765Z-UST_Remote_Control

Remote control

Part Number: XX5040005400

Wall-Mount_LT30B-G_for_DH765Z-UST_DW763Z-UST_High_Reso

Optional wall mount
