DU6198Z

Brings Superb Laser Performance and Durability to Large Venue and Museum Applications

Power and performance

The DU6198Z WUXGA laser projector offers an compelling mix of features and connectivity. With 8,500 lumens it ensures superior visibility, outstanding picture quality and high flexibility for installation in any venue. The projector utilizes a long lasting laser light source to ensure a constant brightness level and colour performance, with up to 20,000 hours of maintenance-free operation. The advanced colour technology, multiple modes, hardware features and HDR support guarantee vibrant and precise colours.

Download Datasheet

Key Features

DLP® technology for vibrant and rich picture quality
High brightness 8,500 ANSI Lumens with 30,000 hrs. laser life (Eco mode)
Powered Lens Control with Lens Positioning Memory (LPS)
Excellent color performance – Rec 709, HDR, Dynamic Black Settings
Constant Brightness to extend light source life & easy blending
High Standard Anti-Dust compliance to extend projector life
360° free angle & geometric adjustment provides a flexible installation options
HDMI 2.0 support UHD-4K signal
HDBaseT™ interface for the transmission of high quality audio and video (4K) data over 100M
Supported network & projector installation control software
Installation flexibility is ensured with 9 optional lenses from 0.38:1 to 5.31-8.3:1 throw ratio range

Brightness and Color Performance

IP6X Optical Engine Certified Design

PJ-Control Tool

Optional Motorized Lens Support

Flexible Installation

Constant Brightness

In-depth Look

PJ-Control

The PJ-Control Tool is a control software for Vivitek’s projectors. It’s useful for AV System Installers and Enterprise IT members who need a centralized system tool for remotely managing and monitoring the deployment of multiple networked Vivitek projectors. It allows for the scheduling of powering on/off systems, and controls such as picture, lens, blend, geometry, masking, color and other settings.

Download PJ Software

PJ-Control Tool Features

SYSTEM MANAGEMENT
Manage and monitor single or multi projectors over the same network.
CREATE GROUPS
Create groups, naming and controlling the projectors simultaneously.
SIMPLE SET UP
Projectors in the same network are automatically found and displayed.
REAL TIME
Support poll time to get real-time system status.
CUSTOM WARP
Custom Warping to give adjustment for highly precise image correction. (DU9900Z only)
CUSTOM MASKING
Line and Bitmap Masking to create capabilities of masking. (DU900Z only)

Download PJ Software

Product Resources

Specifications

DU6198Z

Native Resolution

WUXGA (1920 x 1200)

Brightness

8500 ANSI Lumens

Contrast Ratio

Dynamic Contrast Ratio 3,000,000:1

Max. Supported Resolution

UHD (3840×2160)@60Hz

Native Aspect Ratio

16:10

Lamp Life and Type

Laser light source lasts up to 20,000 hours

Display Type

Single chip DLP® Technology by Texas Instruments

Chip Size

0.67” DMD

Throw Ratio

9 optional lenses from 0.38 to 8.26:1 throw ratio range

Zoom Ratio

1.25x Power Zoom / Power Focus

Keystone Correction

Vertical: +/-30 Steps; Horizontal: +/-30 Steps

Lens Shift Range

Lens Shift Range (Vertical: -15% to +55%, Horizontal: -5% to +5%)

Video Compatibility

SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i)

I/O Connection Ports

VGA-In (15pin D-Sub), HDMI Number of Ports v2.0 (2x), DVI-D, Component (5 BNC) (RGBHV), Audio-In (RCA), VGA-Out (15pin D-Sub), Audio-Out (RCA), Audio-Out (Mini-Jack), RJ45 (HDBaseT/LAN), 12v Trigger, RS-232 (In 1x / Out 1x), 3D-Sync (3D-Sync In 1x /Out 1x), USB A (1x Power: 5V/2.0A), USB miniB ( for Service), Microphone (Mini-Jack), Remote Jack(wire remote)

Dimensions (W x D x H)

580 x 500 x 210 mm

Weight

26 kg

Noise Level

38dB/35dB (Normal/Eco. Mode)

Power

930W (Normal Mode), 740W (Eco. Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode)

Remote Control P/N

5042221900

Standard Accessories

VGA Cable, User Manual (CD), Lens Cap, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord, Remote Control Cable

Optional Accessories

Remote Control P/N (5042221900), 3D Ready(DLP link, PC+Video), Direct 3D (HDMI 1.4a), 3D Mandatory Formats supported (top/bottom, right/left, frame sequential), Instant On/Off

Warranty

Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)

Product Accessories

Lens Options

Ultra Short Throw

Throw Ratio: 0.38:1

Part Number: 3797866500-SVK (D88-UST01B)

Short Throw (Z)

Throw Ratio: 0.77 – 1.1

Part Number: SS-5811129741-VV (D86-0711)

Normal Throw 1

Throw Ratio: 1.1 – 1.3

Part Number: SS-5811129742-VV (D86-1113)

Normal Throw 2

Throw Ratio: 1.26 – 1.60: 1

Part Number: SS-5811131167-VV (D86-1216)

Standard Lens

Throw Ratio: 1.54-1.93: 1

Part Number: SS-5811129740-VV (D86-1519)

Long Throw 1

Throw Ratio: 1.9-2.9

Part Number: SS-5811131168-VV(D86-1929)

Long Throw 2

Throw Ratio: 2.21-3.67:1

Part Number: 3797745000-SVK (D88-SMLZ01)

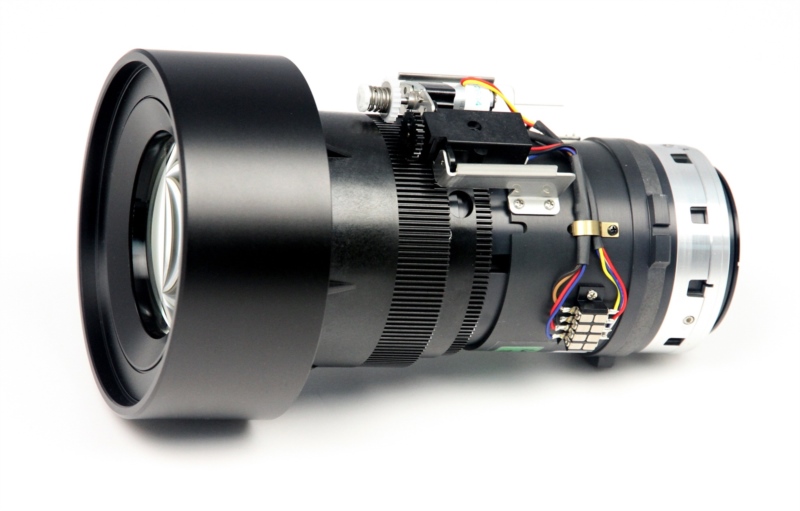

Long Throw 3

Throw Ratio: 3.58-5.38:1

Part Number: 3797745400-SVK (D88-LOZ101)

Long Zoom 4

Throw Ratio: 5.31-8.26:1

Part Number: 3797744900-SVK (D88-LOZ201)

Accessories

Remote control

Part Number: 5042221900
