DH3665ZN

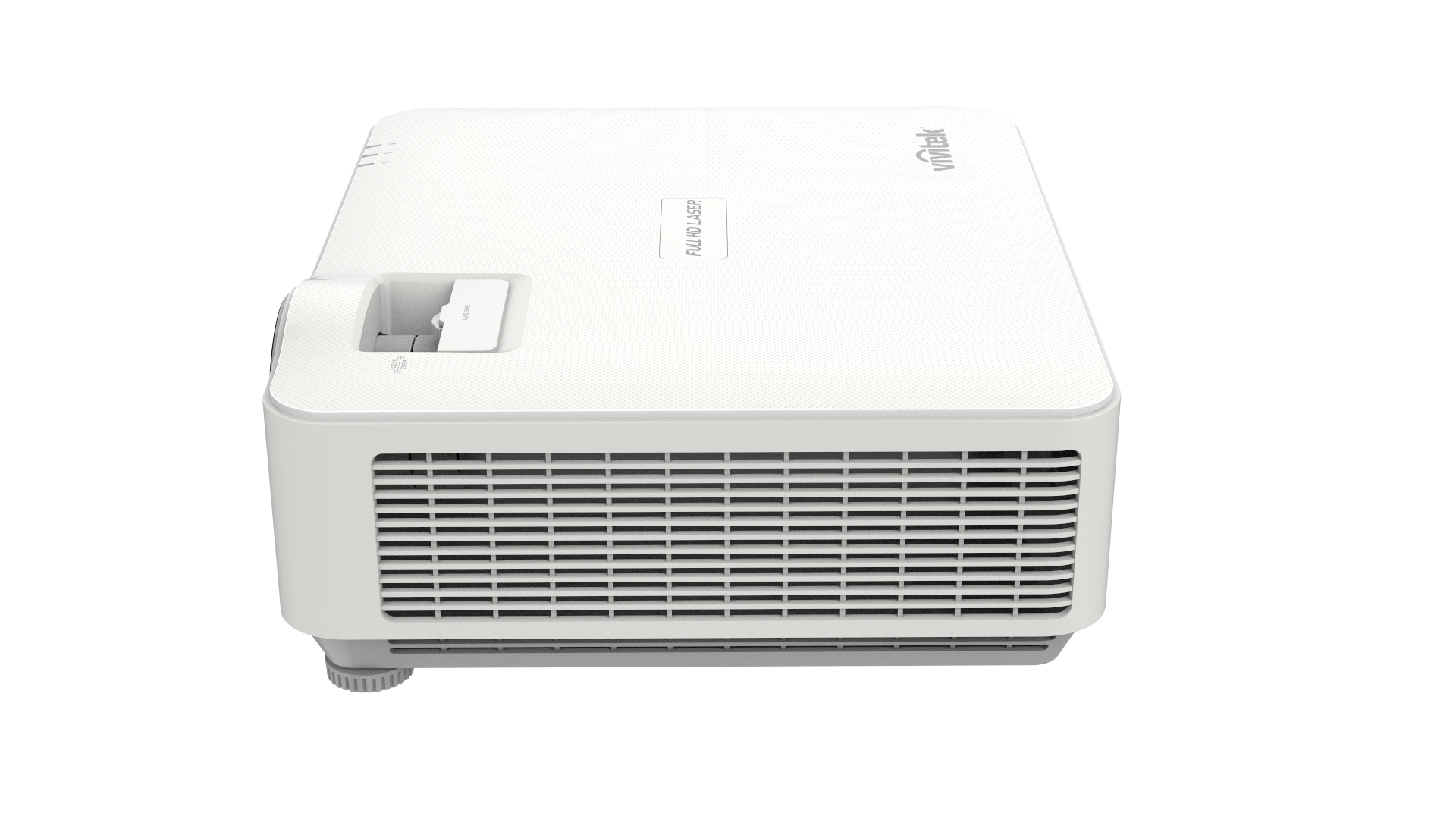

NovoProjector DH3665ZN

DH3665ZN

Product Resources

Specifications

DH3665ZN

Native Resolution
1080p (1920 x 1080)
Brightness
4500 ANSI Lumens
Contrast Ratio
20,000:1
Max. Supported Resolution
WUXGA (1920×1200) @60Hz
Native Aspect Ratio
16:9
Lamp Life and Type
Lamp free design. Laser light source lasts up to 20,000 hours
Display Type
Single Chip 0.65" DLP Technology by TI
Throw Ratio
1.39 – 2.09 :1
Image Size (Diagonal)
25.9" – 324.9"
Projection Distance
1.2 – 10m
Zoom Ratio
1.5x
Offset
130% Half-Height; 115% Full-Height
Keystone Correction
Vertical: +/-30°; Horizontal: +/-30°
Speakers
10W (Mono)
Video Compatibility
SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports
VGA-In (15pin D-Sub) , HDMI Number of Ports v.1.4 (x2), USB B (Service), Microphone (Mini-Jack) , RS-232 , USB A (Power (5V/1.5A), VGA-Out (15pin D-Sub) , Audio-Out (Mini-Jack) , RJ45 (1: LAN), Composite Video , Audio-In (RCA) , Audio-In (Mini-Jack)
Dimensions (W x D x H)
W/Feet: 395 x 340 x 150 mm , W/O Feet: 395 x 340 x 135 mm
Weight
7 kg
Noise Level
35dB / 33dB (Normal / Eco. Mode)
Power
Supply: AC 100-240V, 50/60Hz Consumption: 270W (Eco. Mode), 340W (Normal Mode), <0.5W (Standby)
Remote Control P/N
5042149001
Standard Accessories
Remote Control P/N (5042149001 ), AC Power Cord , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery) , VGA Cable
Optional Accessories
3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , 3D Mandatory Formats supported (top/bottom, right/left, frame sequential) , Keypad lock , Wireless

Product Accessories

Accessories

Remote_Control_For_DH3660Z_DU3661Z_DH3665ZN

Remote control

Part Number: 5042149001
