D837

The Vivitek D837 meets todays demanding video applications with extensive features and picture quality enhancements.

D837

Download Datasheet

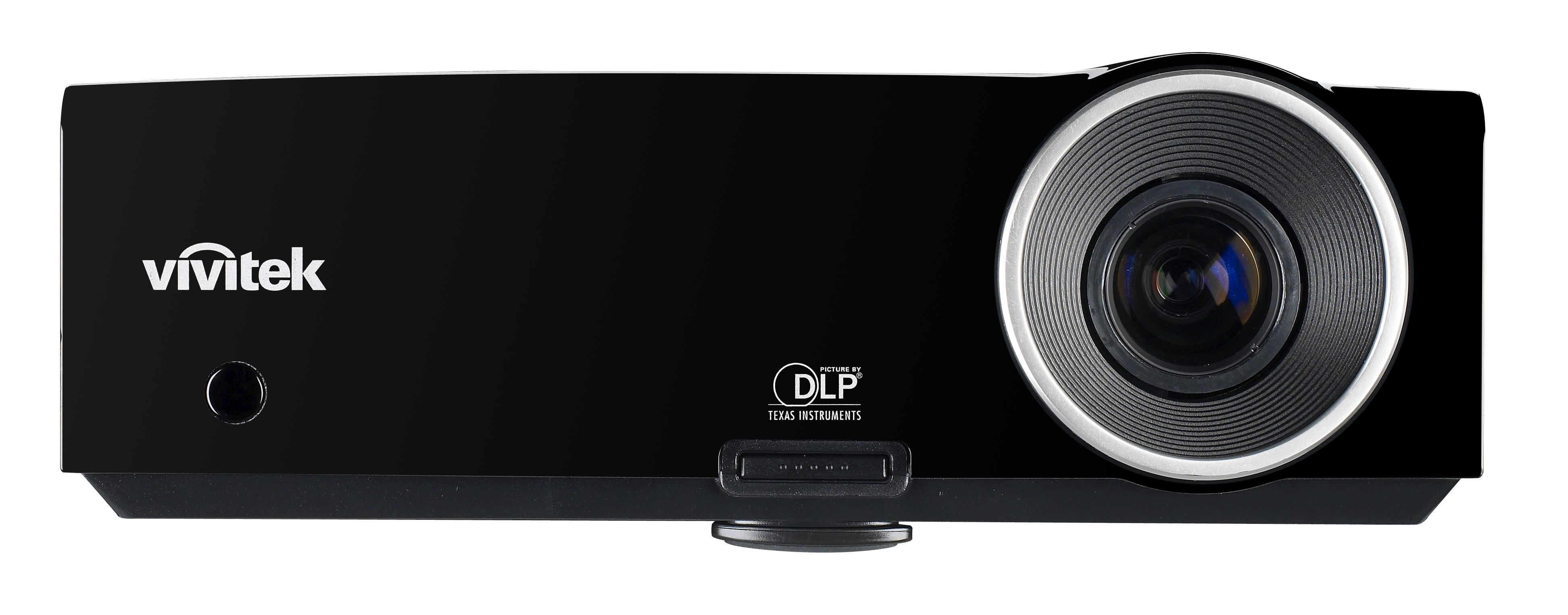

Vivitek_D837_Front_MediumRes
Vivitek_D837_IO Ports_MediumRes
Vivitek_D837_Top_MediumRes
Vivitek_D837_RightHero_MediumRes
Vivitek_D837_Right_MediumRes
Vivitek_D837_LeftHero_MediumRes
Vivitek_D837_LeftBack_MediumRes
Vivitek_D837_Left_MediumRes
Vivitek_D837_FrontTop_MediumRes
Vivitek_D837_Front_MediumRes
Vivitek_D837_Back Top_MediumRes
Vivitek_D837 Right_MediumRes
Vivitek_D837_IO Ports_MediumRes

Product Resources

Specifications

D837

Native Resolution
XGA (1024 x 768)
Brightness
3500 ANSI Lumens
Contrast Ratio
2,500:1
Max. Supported Resolution
UXGA (1600 x 1200) @60Hz
Native Aspect Ratio
4:3
Lamp Life and Type
3,000 / 4,000 Hours (Normal / Eco. Mode), 230W
Display Type
Single chip DLP® Technology by Texas Instruments
Chip Size
0.55” DMD
Throw Ratio
1.93 – 2.16:1
Image Size (Diagonal)
23" – 300"
Projection Distance
1 – 10 m
Zoom Ratio
1.1x
Offset
128%
Keystone Correction
Vertical +/- 15°
Speakers
2W
Video Compatibility
SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports
VGA-In (15pin D-Sub) (2), HDMI Number of Ports v 1.3 , RS-232 , VGA-Out (15pin D-Sub) , Audio-Out (Mini-Jack) , RJ45 , S-Video , Composite Video , Audio-In (RCA) , Audio-In (Mini-Jack)
Dimensions (W x D x H)
280 x 209 x 102 mm
Weight
2,6 kg
Noise Level
36dB/33dB (Normal / Eco. Mode)
Power
Supply: AC 110-240V Consumption: 240W (Eco. Mode), 290W (Normal Mode), <1W (Standby Mode)

Product Accessories

Accessories

VivitekD7_D8_D9_D5000 Series

Remote control

Part Number: False

LB040-D08A_Lamp_Photo_1_For_D825MS_D825ES_D825MX_D825EX_D820

Replacement lamp

Part Number: 5811100876-SVK
