D5380U – UDV

WUXGA High Brightness Installation Projector

D5380U – UDV

Combine high performance and rich functionality with simple handling

The D5380U offers a range of features that make it the ideal projector choice for the professional installation market. In addition to 5000 ANSI lumens of brightness, the WUXGA image resolution delivers excellent fidelity and large screen area for simultaneous display of video conferencing, presentations, and display of charts and graphs. With the installer in mind the D5380U features horizontal and vertical lens shift as well as a centered lens for easy installation and maintenance. The projector has three interchangeable lens options for flexible positioning with regard to varying screen sizes or projection distance requirements and a comprehensive range of connectivity options
Download Datasheet
Vivitek_ D5380U White_Front_HiRes
Vivitek_D5380U White_IO Ports_HiRes
Vivitek_ D5380U White_Front_HiRes
Vivitek_D5380U White_IO Ports_HiRes
Vivitek_D5380U White_Left_HiRes
Vivitek_D5380U White_LeftHero_HiRes

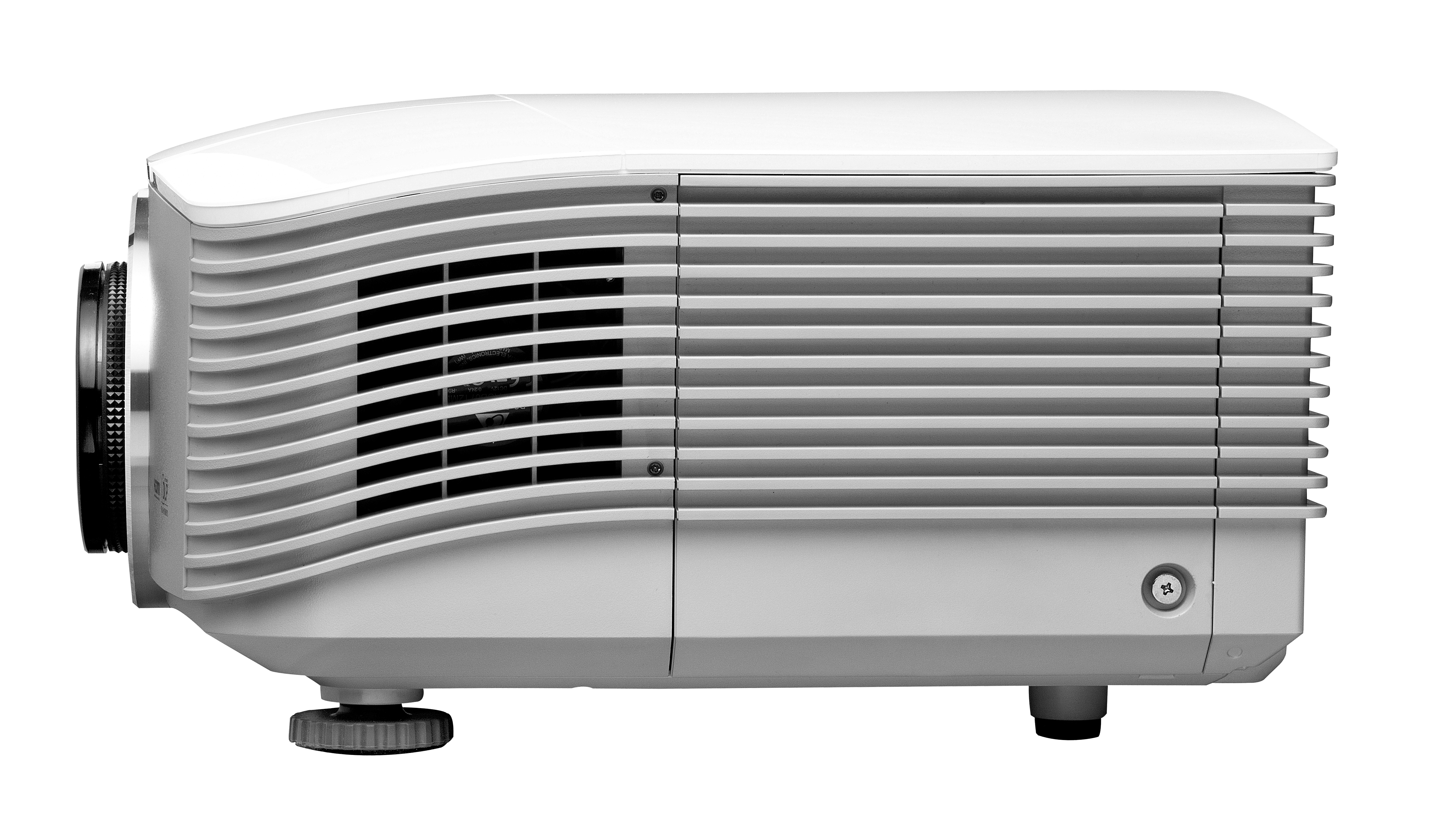

Vivitek_D5380U White_Right_HiRes
Vivitek_D5380U White_RightHero_HiRes

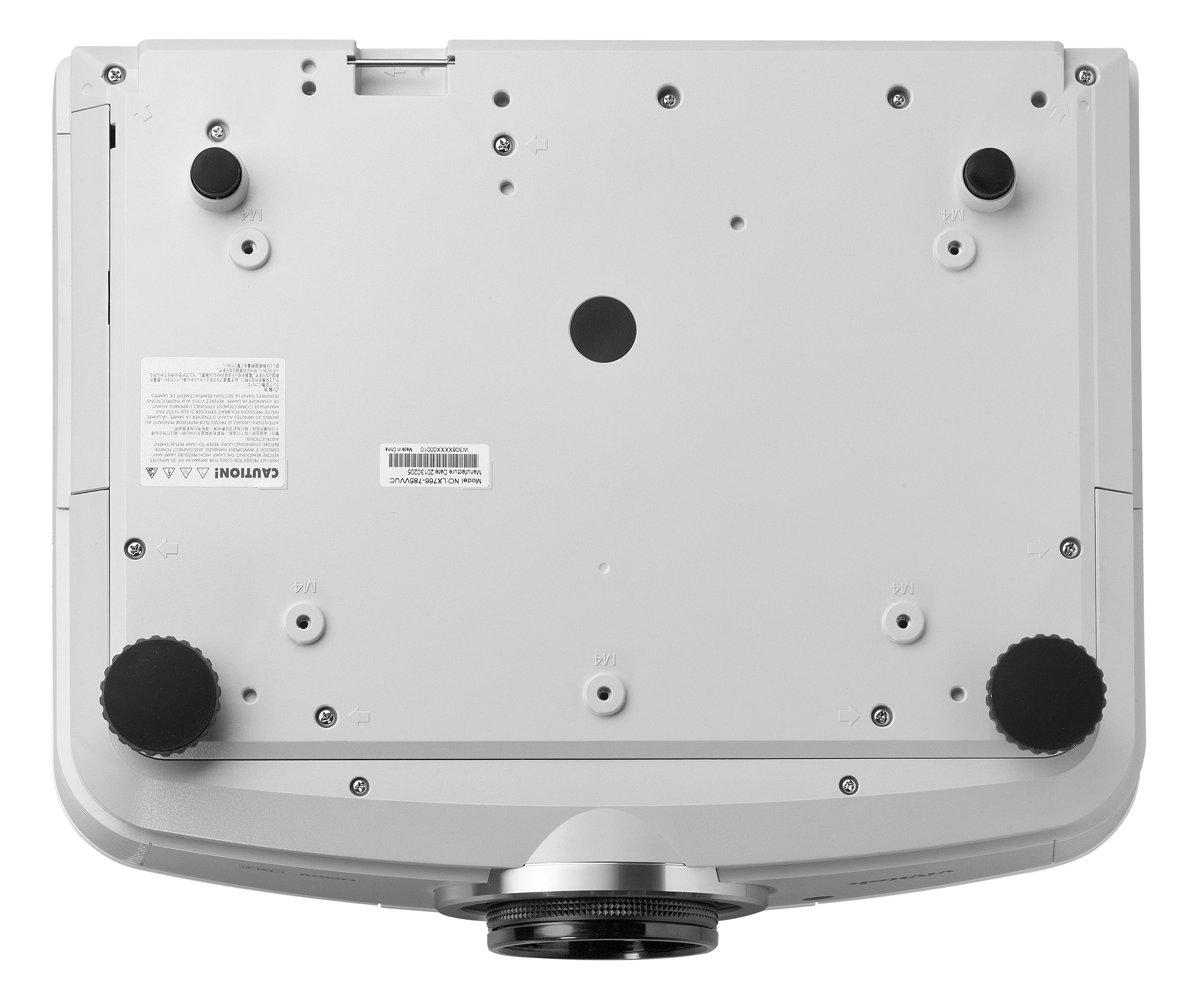

Vivitek_D5000White_Bottom_HiRes

Product Resources

Specifications

D5380U – UDV

Native Resolution
WUXGA (1920 x 1200)
Brightness
5000 ANSI Lumens
Contrast Ratio
2,000:1
Max. Supported Resolution
WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio
16:10
Lamp Life and Type
1,500/3,500 hours (Normal/Eco. Mode) 370W / 280W
Display Type
Single chip DLP® Technology by Texas Instruments
Chip Size
0.67” DMD
Throw Ratio
1.54 – 1.93:1 (Std lens)
Image Size (Diagonal)
30
Projection Distance
1.5 – 7 m
Zoom Ratio
1.25x (Std lens)
Offset
Manual Lens Shift
Keystone Correction
Vertical +/- 40°
Speakers
3W x 2 (Stereo)
Lens Shift Range
Lens Shift Range (Vertical: -20% / +110%, Horizontal: +/- 5%)
Video Compatibility
SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports
VGA-In (15pin D-Sub) (2), HDMI Number of Ports v1.4b , Display Port , DVI-D , Component (5 BNC) (RGBHV) , Remote Jack(wire remote) , 12v Trigger (3.5mm mini Jack), RS-232 , 3D-Sync , USB A (for 5V/1.5A power only), VGA-Out (15pin D-Sub) , Audio-Out (Mini-Jack) , RJ45 , IP Telnet Capable Over RJ-45 , Component (YPbPr RCA x 3) , S-Video , Composite Video , Audio-In (RCA) (2), Audio-In (Mini-Jack) (2)
Dimensions (W x D x H)
431 x 344 x 181 mm
Weight
8,6 kg
Noise Level
42dB/37dB (Normal/Eco. Mode)
Power
Supply: AC 100 – 240V Consumption:450W (Normal Mode), 340W (Eco. Mode), Standby <0.5W
Remote Control P/N
5041825300
Standard Accessories
VGA Cable , AC Power Cord , User Manual (CD) , Lens Cap , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
Optional Accessories
Spare Lamp P/N 5811118452-SVV (Non-Tilt Lamp), 5811118482-SVV (Tilt Lamp), Remote Control P/N (5041825300), 3D Features , 3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , 3D Mandatory Formats supported (top/bottom, right/left, frame sequential) , Keypad lock , Presentation Timer , Wall Color Correction , Instant On/Off
Warranty
Large Venue Warranty: 5 years projector / 1 year on lamp or 1.000 hours whichever comes first

Product Accessories

Lens Options

Standard Zoom D5000-D50180-D5185-D5280U-DH5085 LR

Standard Lens

Throw Ratio: 1.54 – 1.93:1

Part Number: 5811116223-SU (LNS-5SZ1)

Fixed Short D5000-D50180-D5185-D5280U-DH5085LR

Wide Fix

Throw Ratio: 0.78:1

Part Number: 5811120818-SVV (VL904G/LNS-5FX2)

VL905G-2000

Long Zoom 1

Throw Ratio: 1.93 – 2.89:1

Part Number: 5811116224-SU (LNS-5LZ1)

LNS-5LZ2_Super_Long_Throw_Lens

Long Zoom 2

Throw Ratio: 3.0-5.0:1

Part Number: 5811120055-SVV (LNS-5LZ2)

LNS-5STZ_Std_Short_Throw_Lens

Short Throw

Throw Ratio: 1.1-1.3:1

Part Number: 5811120054-SVV (LNS-5STZ)

Accessories

VivitekD7_D8_D9_D5000 Series

Remote control

Part Number: 5041825300

Lamp_Photo_1_D5280U

Replacement lamp

Part Number: 5811118452-SVV (Non-Tilt Lamp), 5811118482-SVV (Tilt Lamp)
