DW855

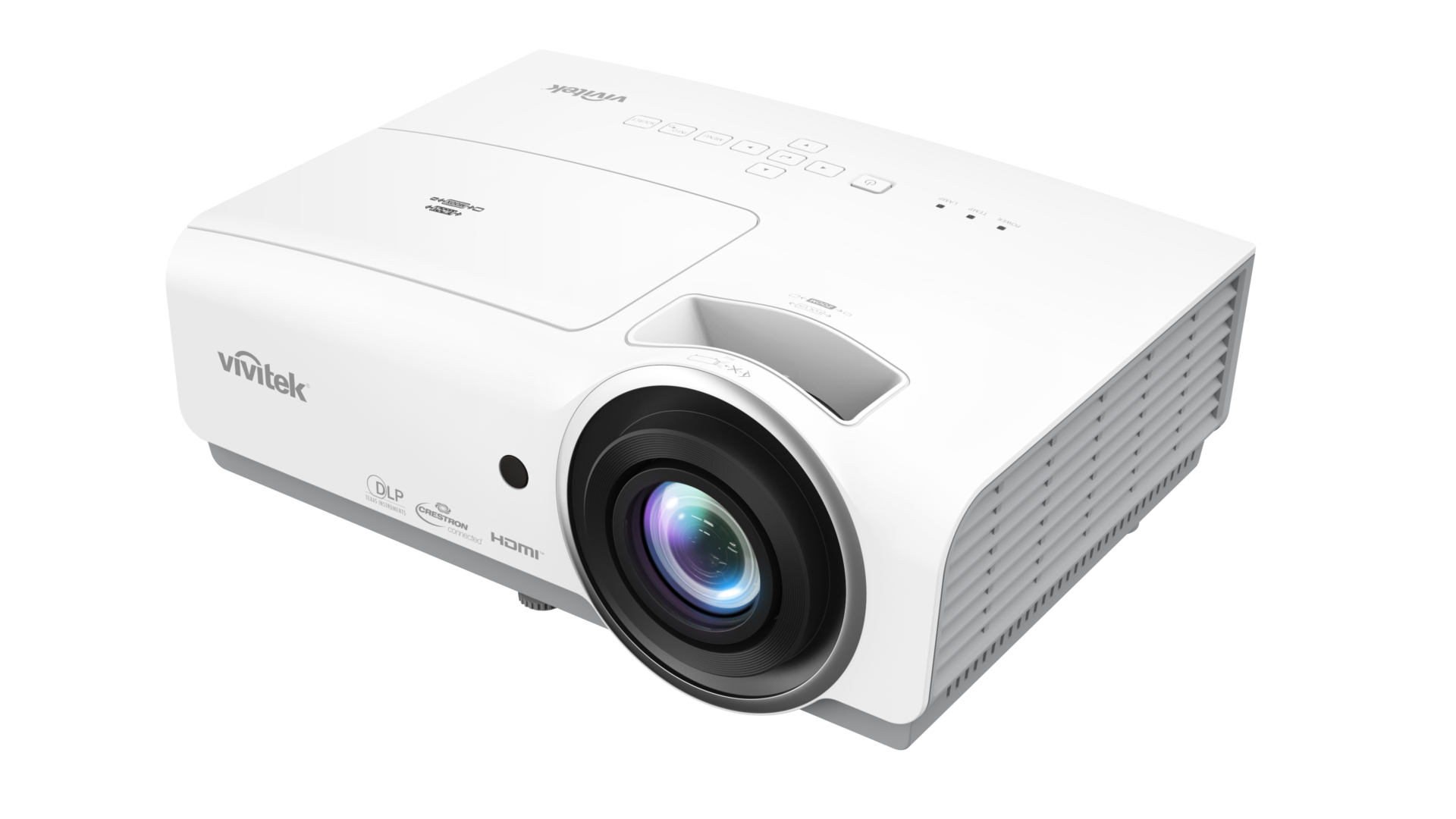

DW855 is a Compact, Portable, High Brightness Projector with Stunning Colors and Diverse Connectivity

DW855

Product Resources

Specifications

DW855

Native Resolution
WXGA (1280 x 800)
Brightness
5500 ANSI Lumens
Contrast Ratio
15,000:1
Max. Supported Resolution
WUXGA (1920×1200)@60Hz
Native Aspect Ratio
16:10
Lamp Life and Type
3,000/4,000/5,000 Hours (Normal/ Eco./Dynamic Eco), 310W/250W
Display Type
Single chip DLP® Technology by Texas Instruments
Chip Size
0.67"
Throw Ratio
1.6- 1.92
Image Size (Diagonal)
25.3” – 317.99"
Projection Distance
1.2 – 10 m
Zoom Ratio
1.2x
Offset
114.9% +/- 5%
Keystone Correction
+/- 30 Degree; +/- 30 Steps
Speakers
10W (Mono)
Lens Shift Range
Lens Shift Range (24–30 Hz, 47–120 Hz)
Video Compatibility
SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports
VGA-In (15pin D-Sub) , HDMI Number of Ports 1.4a (2x), 12v Trigger (Ø3.5mm mini jack), RS-232 , USB A (2x (5V/ 1.5A) (Power Only ), USB miniB (Service), VGA-Out (15pin D-Sub) , Audio-Out (Mini-Jack) , RJ45 , Audio-In (Mini-Jack)
Dimensions (W x D x H)
314 x 213 x 126 mm
Weight
3.4 kg
Noise Level
36dB /31dB (Normal/Eco. Mode)
Power
AC 110-240V, 50/60Hz
Remote Control P/N
5042149001
Standard Accessories
Remote Control P/N (5042149001), Spare Lamp P/N (SS-5811126482-VV), AC Power Cord , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery) , VGA Cable
Optional Accessories
3D Features , 3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , Keypad lock
Warranty
Standard Warranty: 3 years projector / 1 year on lamp or 1.000 hours whichever comes first

Product Accessories

Accessories

Remote_Control_For_DH3660Z_DU3661Z_DH3665ZN

Remote control

Part Number: 5042149001

Vivitel Lamp   DW832-DH833 1

Replacement lamp

Part Number: SS-5811126482-VV
