Large Venue Projectors - DU7299Z

DU7299Z

Mid to Large Meeting Room Laser Projector with Excellent ROI

Powerful laser projector for corporate

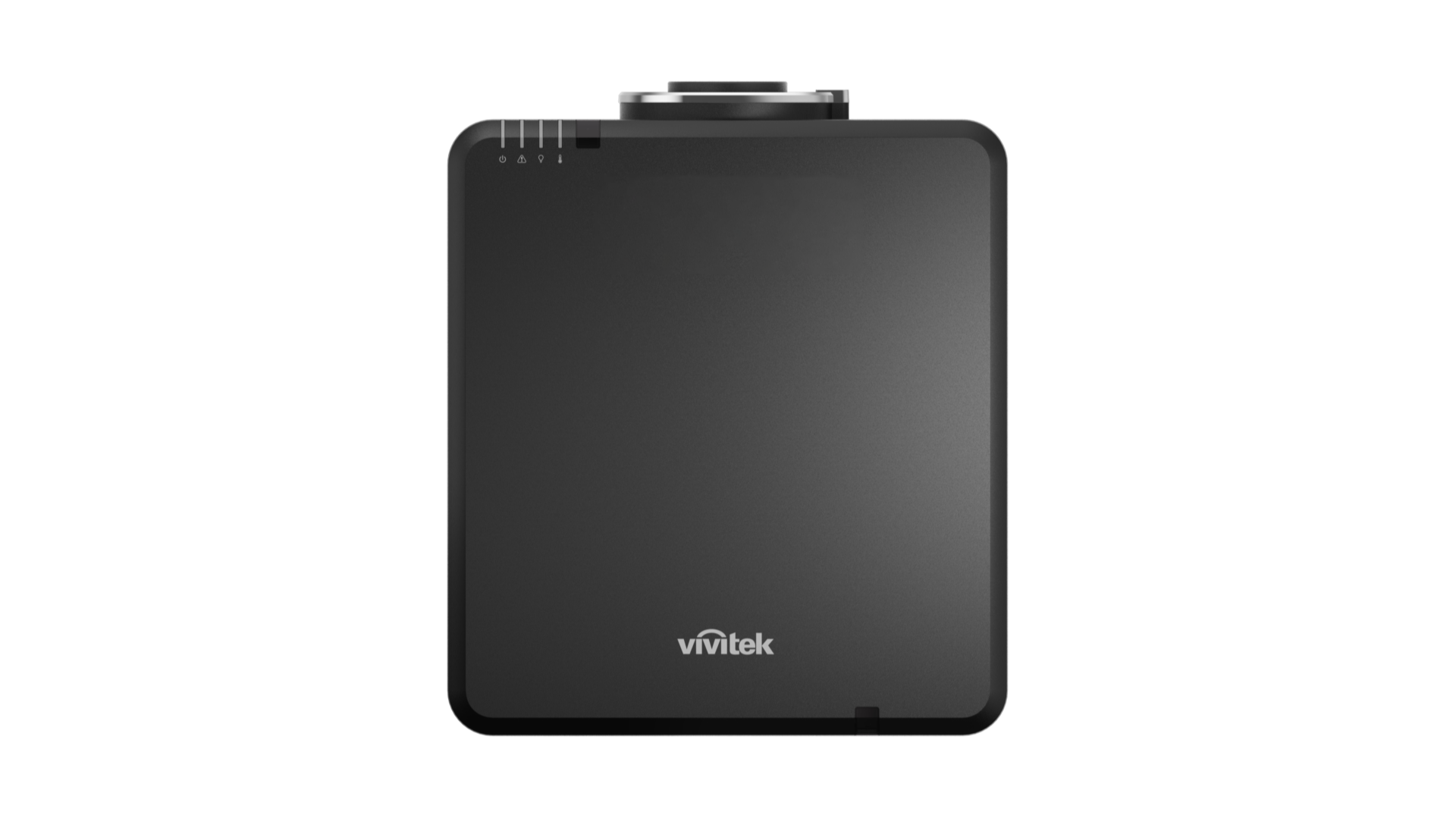

The DU7299Z laser projector is an excellent choice for mid to large corporate meeting rooms, offering a low total cost of ownership. It provides remarkable value to companies seeking maintenance-free durability for up to 20,000 hours, along with easy installation and management. The DU7299Z ensures superior visibility with 10,000 ANSI lumen brightness, vivid true-to-life colors in the Rec. 709 color space, and exceptionally quiet 38dB operation. Additionally, it can be enhanced with Vivitek’s NovoConnect Solution for wireless presentation and collaboration.

Download Datasheet

Key Features

0.67” DLP® and BrilliantColor™ technology
High brightness with a 30,000-hour laser life (in Eco mode)
Powered Lens Control with Lens Positioning Memory (LPS)
Low power consumption designed to reduce energy costs
Large projection size with excellent picture quality
Constant Brightness for extend light source life & easy blending
IPX6 High standards dust protection to extend projector life
360° free installation and multiple geometric adjustments for easy installation
Compatible with UHD-4K input signals
Supports Art-Net for stage control
“Rental Mode“ ready for rental applications
Built-in Speaker 10w x2
HDBaseT™ interface for the transmission of high quality audio and video (4K) data over 100m
Supported network & projector installation control software
Available in nine (9) interchangeable motorized lens (Optional)

Brightness and Lowest Power Consumption

High Efficiency

Optional Motorized Lens Support

Lens Position Memory

Constant Brightness

24/7 Operation

PJ-Control Tool

In-depth Look

PJ-Control

The PJ-Control Tool is a control software for Vivitek’s projectors. It’s useful for AV System Installers and Enterprise IT members who need a centralized system tool for remotely managing and monitoring the deployment of multiple networked Vivitek projectors. It allows for the scheduling of powering on/off systems, and controls such as picture, lens, blend, geometry, masking, color and other settings.

Download PJ Software

PJ-Control Tool Features

SYSTEM MANAGEMENT
Manage and monitor single or multi projectors over the same network.
CREATE GROUPS
Create groups, naming and controlling the projectors simultaneously.
SIMPLE SET UP
Projectors in the same network are automatically found and displayed.
REAL TIME
Support poll time to get real-time system status.
CUSTOM WARP
Custom Warping to give adjustment for highly precise image correction. (DU9900Z only)
CUSTOM MASKING
Line and Bitmap Masking to create capabilities of masking. (DU900Z only)

Download PJ Software

Product Resources

Specifications

DU7299Z

Native Resolution

WUXGA (1920 x 1200)

Brightness

10000 ANSI Lumens

Contrast Ratio

3,000,000:1 (Full On/Off)

Max. Supported Resolution

4K-UHD (3840 x 2160) @60Hz

Native Aspect Ratio

16:10

Lamp Life and Type

Lamp free design. Laser light source lasts up to 20,000 hours

Display Type

Single chip DLP® Technology by Texas Instruments

Chip Size

0.67” DMD

Throw Ratio

9 optional lenses from 0.50:1 to 8.3 :1 throw ratio range

Zoom Ratio

Motorized

Offset

Motorized Lens Shift

Keystone Correction

Vertical +/-30°; Horizontal +/-30°

Speakers

10 W x2

Lens Shift Range

Lens Shift Range (Vertical: Bottom 50% to Top 70%, Horizontal: Left 15% to Right 15%)

Video Compatibility

SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L), 4K-UHD

I/O Connection Ports

VGA-In (15pin D-Sub) , HDMI Number of Ports v.2.0 (x2), DVI-D , Component (5 BNC) (RGBHV) , USB B (Service), Remote Jack(wire remote) , RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A (Power Only), VGA-Out (15pin D-Sub) , Audio-Out (RCA) , RJ45 (x2: LANx1, HDBaseTx1), Composite Video , Audio-In (RCA) , Audio-In (Mini-Jack)

Dimensions (W x D x H)

470 x 517 x 202mm

Noise Level

38dB/36dB (Normal/Eco. Mode)

Power

Supply: AC 100-240V, 50/60Hz Consumption: 575W (Normal Mode), <0.5W (Standby)

Remote Control P/N

5042221900

Standard Accessories

Remote Control P/N (5042221900), AC Power Cord , Lens Cap , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery) , VGA Cable

Optional Accessories

3D Features , 3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , 3D Mandatory Formats supported (top/bottom, right/left, frame sequential) , Keypad lock

Warranty

Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)

Product Accessories

Lens Options

Short Throw (F)

Throw Ratio: 0.47 – 0.5

Part Number: SS-D86-04705PL-VVW (D86-04705)

Short Throw (Z)

Throw Ratio: 0.77 – 1.1

Part Number: SS-5811129741-VV (D86-0711)

Normal Throw 1

Throw Ratio: 1.1 – 1.3

Part Number: SS-5811129742-VV (D86-1113)

Normal Throw 2

Throw Ratio: 1.25 – 1.60: 1

Part Number: SS-5811131167-VV (D86-1216)

Standard Lens

Throw Ratio: 1.54-1.93: 1

Part Number: SS-5811129740-VV (D86-1519)

Long Throw 1

Throw Ratio: 1.93-2.9

Part Number: SS-5811131168-VV(D86-1929)

Long Throw 2

Throw Ratio: 2.22-3.67:1

Part Number: 3797745000-SVK (D88-SMLZ01)

Long Throw 3

Throw Ratio: 3.58-5.38:1

Part Number: 3797745400-SVK (D88-LOZ101)

Long Zoom 4

Throw Ratio: 5.31-8.26:1

Part Number: 3797744900-SVK (D88-LOZ201)

Accessories

Remote control

Part Number: 5042221900
