DU7095Z

Laser Projector with High Brightness and Low Maintenance

DU7095Z

Lamp-Free and Eco-Friendly

With impressively vivid colors and a high brightness of 6,000 ANSI lumens, the DU7095Z offers the next generation of advanced projection technology laser. Designed lamp-free, it provides a low cost of ownership, with minimal maintenance, and gives a stable, high-quality projection for up to 20,000 hours. The DU7095Z offers an immersive big-screen experience with an unbeatable return on investment.
Download Datasheet

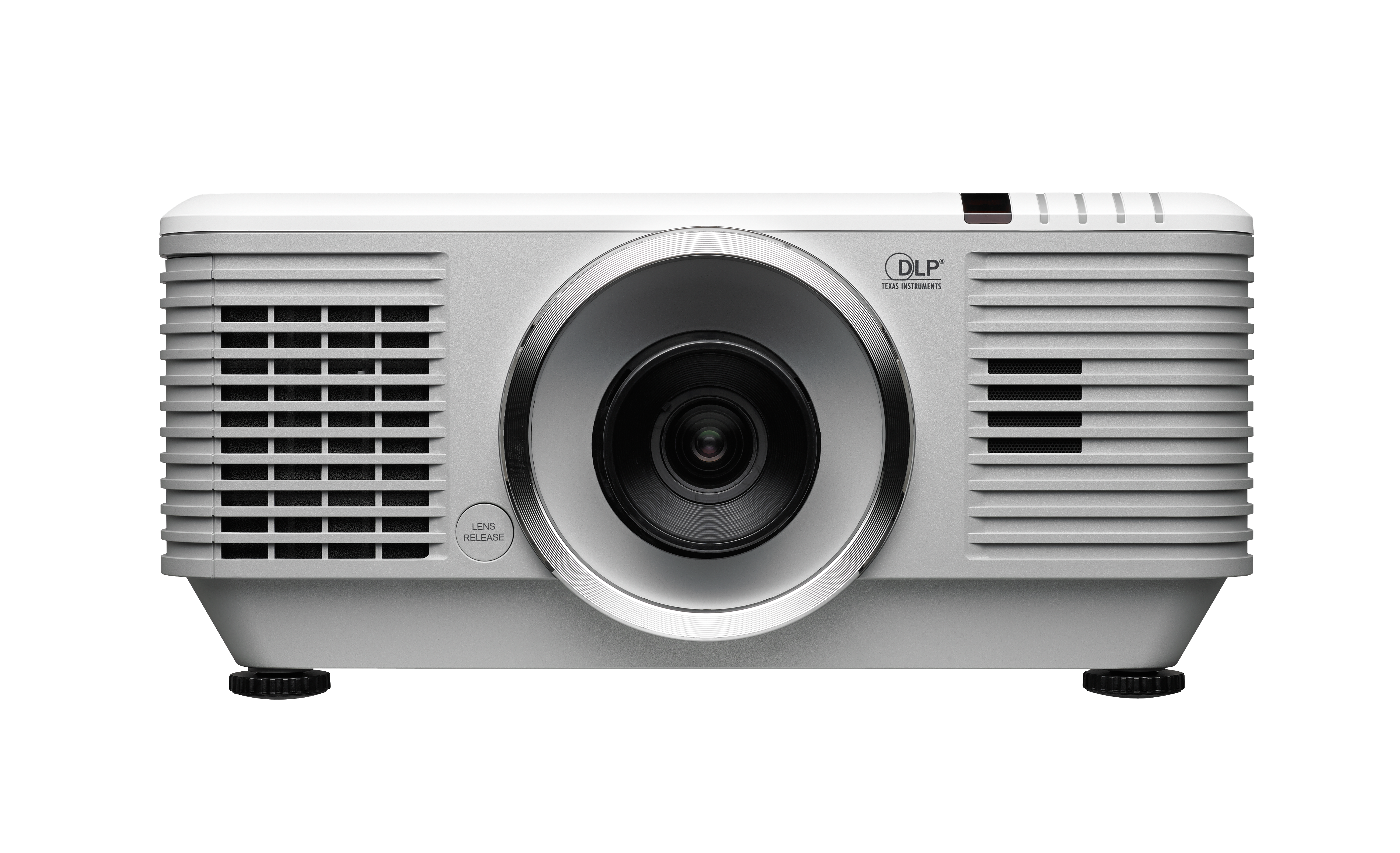

Vivitek_DU7095Z_WH_Front
Vivitek_DU7095Z_WH_IO_Port_Right
Vivitek_DU7095Z_WH_Front
Vivitek_DU7095Z_WH_Front_Top
Vivitek_DU7095Z_WH_Left_Hero
Vivitek_DU7095Z_WH_Right_Hero
Vivitek_DU7095Z_WH_Left_Back_Hero
Vivitek_DU7095Z_WH_Right_Back_Hero
Vivitek_DU7095Z_WH_Left
Vivitek_DU7095Z_WH_Rear
Vivitek_DU7095Z_WH_IO_Port_Right
Vivitek_DU7095Z_WH_Back_2
Vivitek_DU7095Z_WH_Top
Vivitek_DU7095Z_WH_Bottom

Product Resources

Specifications

DU7095Z

Native Resolution
WUXGA (1920 x 1200)
Brightness
6000 ANSI Lumens
Contrast Ratio
15,000:1
Max. Supported Resolution
WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio
16:10
Lamp Life and Type
Lamp free design. Laser light source lasts up to 20,000 hours
Display Type
Single chip DLP® Technology by Texas Instruments
Chip Size
0.67” DMD
Throw Ratio
5 optional lenses from 0.78:1 to 3.0-5.0:1 throw ratio range
Image Size (Diagonal)
depending on lens selection
Projection Distance
depending on lens selection
Zoom Ratio
Manual Zoom & Focus
Offset
Manual Lens Shift
Keystone Correction
Vertical +/-30°; Horizontal +/-25°
Speakers
10W x 2
Lens Shift Range
Lens Shift Range (Manual; Vertical +55%, -15%; Horizontal +/-5%)
Video Compatibility
SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports
VGA-In (15pin D-Sub) , HDMI Number of Ports v.1.4 (x2: HDMI/MHLx1, HDMIx1), DVI-D , Component (5 BNC) (RGBHV) , USB B (Service), Remote Jack(wire remote) , RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A (Power Only), VGA-Out (15pin D-Sub) , Audio-Out (RCA) , RJ45 (x2: LANx1, HDBaseTx1), Composite Video , Audio-In (RCA) , Audio-In (Mini-Jack)
Dimensions (W x D x H)
470 x 517 x 202 mm
Weight
25 kg
Noise Level
33dB/30dB (Normal/Eco. Mode)
Power
Supply: AC 100-240V, 50/60Hz Consumption: 530W (Eco. Mode), 650W (Normal Mode), <0.5W (Standby)
Remote Control P/N
5041846600
Standard Accessories
Remote Control P/N (5041846600), 3D Glasses P/N (3534257700), AC Power Cord , User Manual (CD) , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery) , VGA Cable
Optional Accessories
3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , 3D Mandatory Formats supported (top/bottom, right/left, frame sequential) , Keypad lock
Warranty
Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)

Product Accessories

Lens Options

VL906G_LNS_7SZ1_Standard (2)

Standard Lens

Throw Ratio: 1.54 – 1.93:1

Part Number: 5811120865-SVV (VL906G)

VL904G_LNS-5FX2_Wide Fix

Wide Fix

Throw Ratio: 0.78:1

Part Number: 5811120818-SVV (VL904G/LNS-5FX2)

VLG907G_LNS-5STZ_Std_Short_Throw_Lens

Wide Zoom

Throw Ratio: 1.10 – 1.30:1

Part Number: 5811120054-SVV (VL907G/LNS-5STZ)

VL908G_LNS_7LZ1 Long Throw

Long Zoom 1

Throw Ratio: 1.93 – 2.89:1

Part Number: 5811119237-SVV (VL908G/LNS-5LZ1)

VL909G_LNS-5LZ2_LNS-5LZ2_Super_Long_Throw_Lens_Lens_Long Throw2

Long Zoom 2

Throw Ratio: 3.00 – 5.01:1

Part Number: 5811120055-SVV (LNS-5LZ2)

Accessories

DU7095ZRC

Remote control

Part Number: 5041846600
