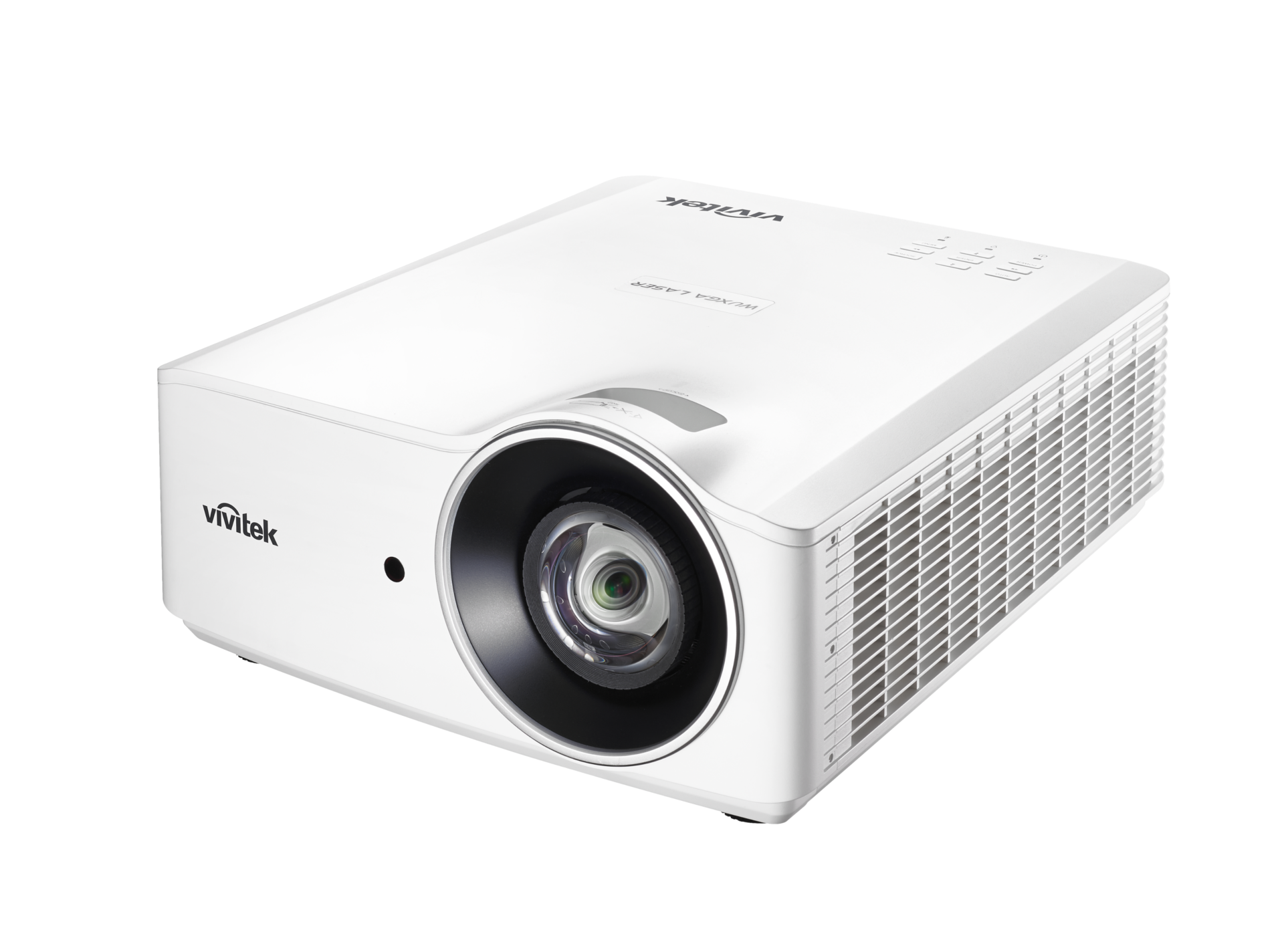

DU4381Z-ST

High Performance Short Throw Laser Projector

DU4381Z-ST

The DU4381Z-ST projector is the ideal for a wide range of applications, including corporate, education, as well as galleries and museum.

Experience the difference with the ultimate short-throw projector DU4381Z-ST that provides effortless and discreet positioning options in close proximity to the projected surface. This versatile WUXGA laser projector offers an impressive picture with a brightness of 6100 lumens. Along with 0.5 short throw lens, 360-degree positioning option and optimal thermal management allow for a picture perfect installation both in single set up as well as in mapping applications.
Download Datasheet
Vivitek_DU4381Z-ST
Vivitek_DU4381Z-ST
Vivitek_DU4381Z-ST
Vivitek_DU4381Z-ST
Vivitek_DU4381Z-ST
Vivitek_DU4381Z-ST
Vivitek_DU4381Z-ST
Vivitek_DU4381Z-ST
Vivitek_DU4381Z-ST
Vivitek_DU4381Z-ST

Key Features

  • DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
  • 6100lm high brightness with 30,000 hrs (Eco) laser life
  • 0.50:1 Short Throw Ratio
  • IP6X high standard Anti-Dust compliant
  • Delivers up to a 300” image from a distance close to the projection surface
  • Rec 709 excellent color performance-coverage 95%
  • Constant Brightness to keep the brightness constant
  • 360° (degree) positioning for flexible installation
  • H/V keystone / 4 corner geometric adjustment
  • HDBaseT™ interface for the transmission of high-quality audio and video data over 100M
  • Crestron® RoomView™ integration for network monitoring and management
  • Power USB-A (5V/1.5A)
  • Support 24/7 operation
ICON Brightness and Lowest Power Consumption

Brightness and Color Performance

ICON DUST PROOF WHITE

IP6X / IP5X Compliant Design

ICON Supports 3G SDI HDBaseT Connectivity

Support HDBaseT™ Connectivity

ICON Flexible Installation

Flexible Installation

ICON Fan Error Auto Protection

Fan Error Auto Protection

ICON 24 7 Operation

24/7 Operation

Product Resources

Specifications

DU4381Z-ST

Native Resolution
WUXGA (1920×1200)
Brightness
6100 ANSI Lumens
Contrast Ratio
30,000 :1
Max. Supported Resolution
WUXGA (1920×1200)
Native Aspect Ratio
16:10
Display Type
Single chip DLP® Technology by Texas Instruments
Chip Size
0.67" S600HB
Throw Ratio
0.5:1
Image Size (Diagonal)
60" – 325"
Projection Distance
0.65 – 3.5 m
Zoom Ratio
Fixed
Offset
121%(Full) / 110.5%(Half)
Keystone Correction
Vertical: +/-15°, Horizontal +/-15°
I/O Connection Ports
VGA-In (15pin D-Sub) (1x), HDMI Number of Ports 1.4a (3x), Microphone (Mini-Jack) (1x), Remote Jack(wire remote) , RS-232 (1x ), 3D-Sync (1x 3D Sync out), USB A (1x 5V 1.5A), USB miniB (Service), VGA-Out (15pin D-Sub) (1x), RJ45 (2x LAN / HDBaseT), IP Telnet Capable Over RJ-45 , Composite Video (1x), Audio-In (RCA) (1x), Audio-In (Mini-Jack) (1x)
Dimensions (W x D x H)
360 x 440 x 186.3 mm
Weight
10.5 kg
Noise Level
36dB/34dB (Normal/Eco. Mode)
Power
AC 100-240V, 50/60Hz
Remote Control P/N
5041846603
Standard Accessories
R/C Wire 3.5mm Jack , AC Power Cord , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
Optional Accessories
Remote Control P/N (5041846603), 3D Features , 3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , 3D Mandatory Formats supported (top/bottom, right/left, frame sequential) , Keypad lock

Product Accessories

Accessories

Remote_control_DU4381Z-ST

Remote control

Part Number: 5041846603
