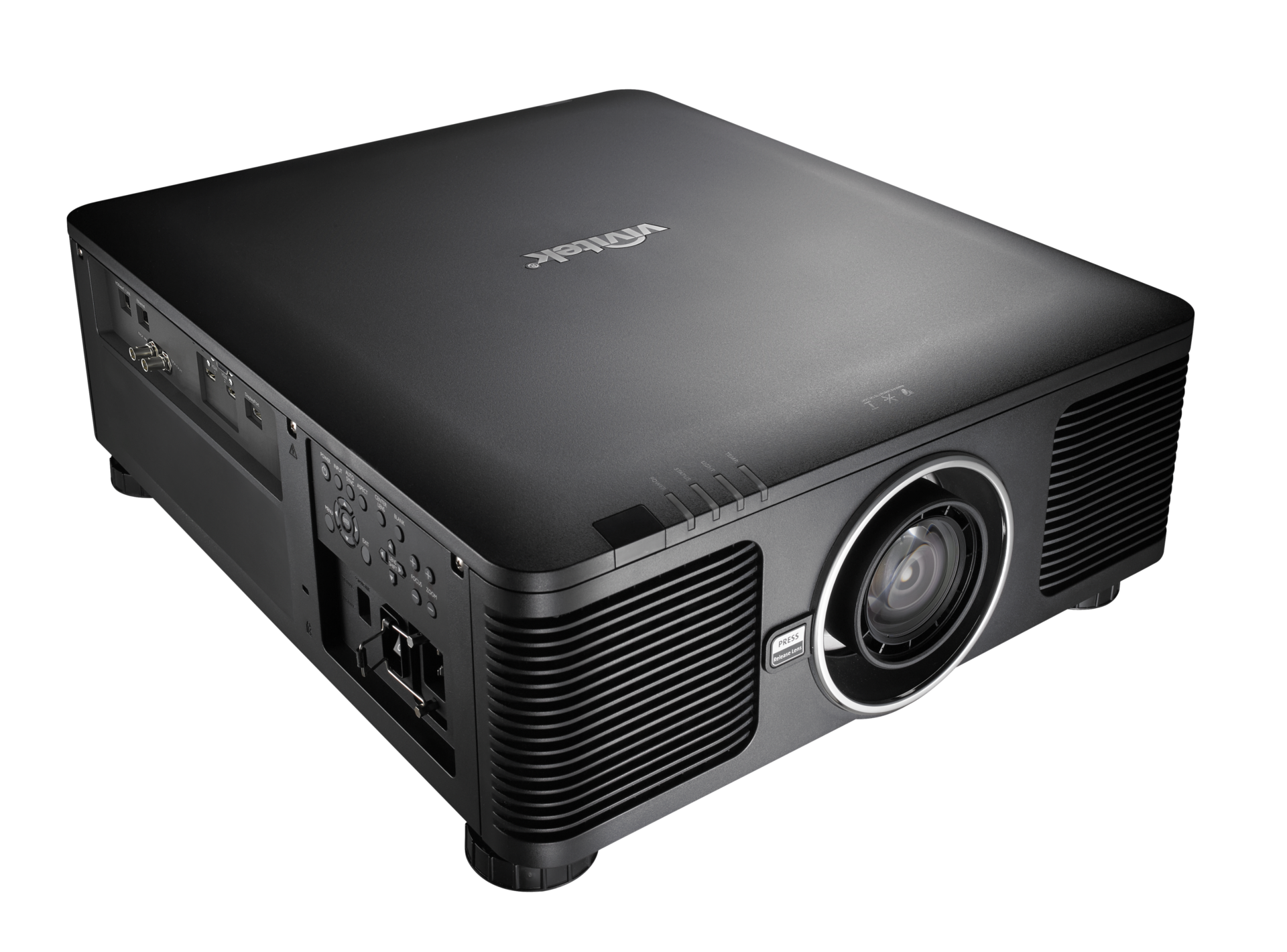

DK10000Z
Brings Advanced Laser Projector Technology to Large Venue and Museum Applications
The DK10000Z offers an equally compelling mix of features and connectivity, with exceptional picture clarity
Designed for large venue and museum applications, the DK10000Z offers exceptional picture clarity in 4K-UHD resolution and 10,000 ANSI lumens brightness. Compared to traditional and large – 3-chip 4K projectors, the DK10000Z is a compact choice in this category, with a smaller footprint weighing less than 29kg. This is thanks to it utilising Texas Instruments’ single chip 4K-UHD XPR technology that delivers a stunning 8.3 million pixels and perfect alignment using a single chip DLP system.
Download Datasheet
Key Features
- DLP® technology for vibrant and rich picture quality
- 4K-UHD resolution with 8.3M pixels to show every details
- 10,000 ANSI lumens of brightness, and 10,000:1 contrast ratio for clear, crisp and bright projection
- Long lasting laser light source for constant brightness level and color performance for up to 20,000 hours operations. Designed for heavy duty 24/7 operations with 360° installation angle flexibility
- 3G-SDI & HDBaseT for robustness for long signal transmission
- Installation flexibility is ensured with 8 optional lenses from 0.38:1 to 8.26:1 throw ratio range
- Motorized and wide lens shift range allows easy placement of the projector without distorting the image
- Projection image alignment is built-in, along with multi-screen edge-blending, warping and keystone correction features
- Constant Brightness – designed to reduce the need for regular recalibration of the projectors, especially when edge blended. A built-in light sensor inside the projector monitors the level of light so that when a reduction in light is detected, the projector will regulate dynamically the electricity power to increase the light output to your pre-defined brightness level, and thus maintaining a constant level of brightness
- Easy projector monitor and control over network
Edge Blending
4K-UHD Resolution
Lens Position Memory
Support Supports 3G-SDI & HDBaseT™ Connectivity
Water Cooling System
IP6X Optical Engine Certified Design
Specifications
DK10000Z
| Native Resolution |
|
|
|---|---|---|
| Brightness |
|
|
| Contrast Ratio |
|
|
| Max. Supported Resolution |
|
|
| Native Aspect Ratio |
|
|
| Lamp Life and Type |
|
|
| Display Type |
|
|
| Chip Size |
|
|
| Throw Ratio |
|
|
| Zoom Ratio |
|
|
| Offset |
|
|
| Keystone Correction |
|
|
| Lens Shift Range |
|
|
| Video Compatibility |
|
|
| I/O Connection Ports |
|
|
| Dimensions (W x D x H) |
|
|
| Weight |
|
|
| Noise Level |
|
|
| Power |
|
|
| Remote Control P/N |
|
|
| Standard Accessories |
|
|
| Warranty |
|
Product Accessories
Lens Options
.jpg "DK10000Z 30")
Standard Lens
Throw Ratio: 1.73-2.27:1
Part Number: 3797744200-SVK (D88-ST001)
.jpg "DK10000Z 31")
Wide Fix
Throw Ratio: 0.76:1
Part Number: 3797745100-SVK (D88-WF18501)
Ultra Wide Zoom
Throw Ratio: 0.75-0.94:1
Part Number: 3797804200-SVK (D88-UWZ01)
.jpg "DK10000Z 33")
Wide Zoom
Throw Ratio: 1.26-1.79:1
Part Number: 3797745200-SVK (D88-WZ01)
.jpg "DK10000Z 34")
Semi Long Zoom
Throw Ratio: 2.22-3.69:1
Part Number: 3797745000-SVK (D88-SMLZ01)
.jpg "DK10000Z 35")
Long Zoom 1
Throw Ratio: 3.58-5.40:1
Part Number: 3797745400-SVK (D88-LOZ101)
.jpg "DK10000Z 36")
Long Zoom 2
Throw Ratio: 5.34-8.36:1
Part Number: 3797744900-SVK (D88-LOZ201)
Ultra Short Throw
Throw Ratio: 0.377:1
Part Number: 3797866500-SVK (D88-UST01B)
Accessories
Remote control
Part Number: 5042221900
