DH858N

NovoProjector DH858N

DH858N

Product Resources

Specifications

DH858N

Native Resolution
1080p (1920 x 1080)
Brightness
4800 ANSI Lumens
Contrast Ratio
15,000:1
Max. Supported Resolution
WUXGA (1920×1200) @60Hz
Native Aspect Ratio
16:9
Lamp Life and Type
1,500 / 3,500 Hours (Normal / Eco. Mode), 370W/280W
Display Type
Single Chip 0.65" DLP Technology by TI
Throw Ratio
1.39 – 2.09
Image Size (Diagonal)
26.7” – 334"
Projection Distance
1.2 – 10m
Zoom Ratio
1.5x
Offset
114.9% ±5%
Keystone Correction
±30 Degree; ±30 Steps
Speakers
10W (Mono)
Video Compatibility
SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)

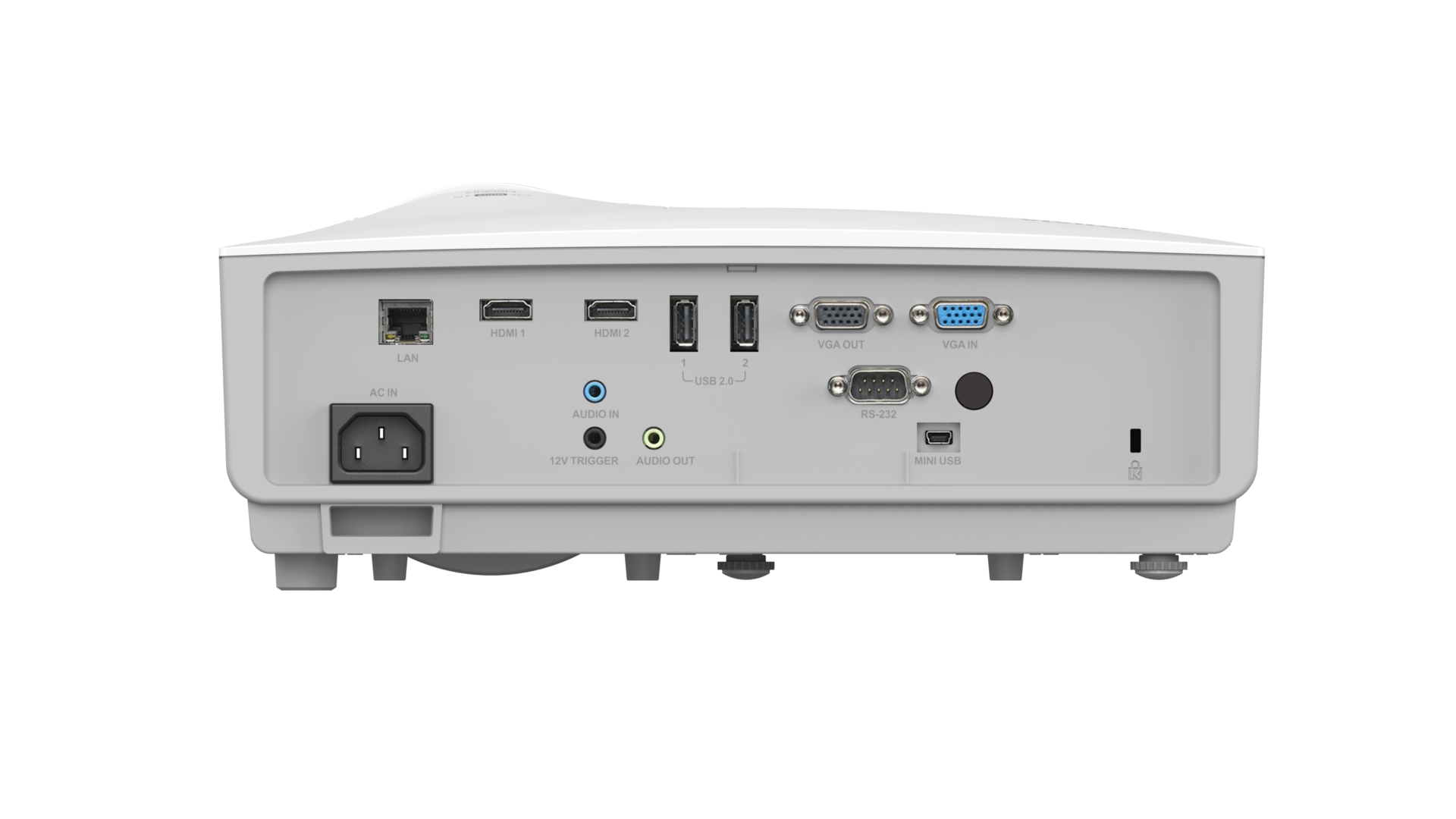

I/O Connection Ports
VGA-In (15pin D-Sub) , HDMI Number of Ports v.1.4 (x2), 12v Trigger (Ø3.5mm mini jack), RS-232 , USB A (Power (5V/1.5A), USB miniB (Service), VGA-Out (15pin D-Sub) , Audio-Out (Mini-Jack) , IP Telnet Capable Over RJ-45 , Audio-In (Mini-Jack)
Dimensions (W x D x H)
314 x 213 x 126mm
Weight
3.4 kg
Noise Level
36dB/31dB (Normal/Eco. Mode)
Power
340W (Normal Mode), 270W (Eco. Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode)
Remote Control P/N
5042149001
Standard Accessories
Remote Control P/N (5042149001), Spare Lamp P/N (SS-5811126482-VV), AC Power Cord , User Manual (CD) , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery) , VGA Cable
Optional Accessories
3D Features , 3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , 3D Mandatory Formats supported (top/bottom, right/left, frame sequential) , Wireless
Warranty
Standard Warranty: 3 years projector / 1 year on lamp or 1.000 hours whichever comes first

Product Accessories

Accessories

Remote_Control_For_DH3660Z_DU3661Z_DH3665ZN

Remote control

Part Number: 5042149001

Vivitel Lamp   DW832-DH833 1

Replacement lamp

Part Number: SS-5811126482-VV
