DH773USTi

Ultra Short Throw Interactive Projector

DH773USTi

Ultra short throw lens can make 110 inch projection screen from as little as 51cm away

The DH773USTi is the ultimate interactive ultra-short-throw projector for the education with 3500 lumen of brightness and 1080p resolution. The projector offers a 100'' diagonal projection image from as little as 51cm away from the screen surface. The DH773USTi in particular, makes interactivity even easier, making it a robust alternative to flat panels when a bigger size, such as 110 inch, is more suitable to cover the viewing distance.
Download Datasheet
Vivitek_DH773USTi
Vivitek_DH773USTi
Vivitek_DH773USTi
Vivitek_DH773USTi
Vivitek_DH773USTi
Vivitek_DH773USTi
Vivitek_DH773USTi
Vivitek_DH773USTi
Vivitek_DH773USTi

Product Resources

Specifications

DH773USTi

Native Resolution
1080p (1920×1080)
Brightness
3500 ANSI Lumens
Contrast Ratio
10,000:1
Max. Supported Resolution
UHD (3840 x 2160) @60Hz
Native Aspect Ratio
16:9
Lamp Life and Type
6,000 / 12,000 Hours (Normal / Eco. Mode)
Display Type
Single chip DLP® Technology by Texas Instruments
Chip Size
0.65” DMD
Throw Ratio
0.33: 1
Image Size (Diagonal)
88" – 110"
Projection Distance
341 – 510 mm
Zoom Ratio
Fixed 1x
Offset
124%
Keystone Correction
Vertical: +/- 40°
Speakers
10W x 2

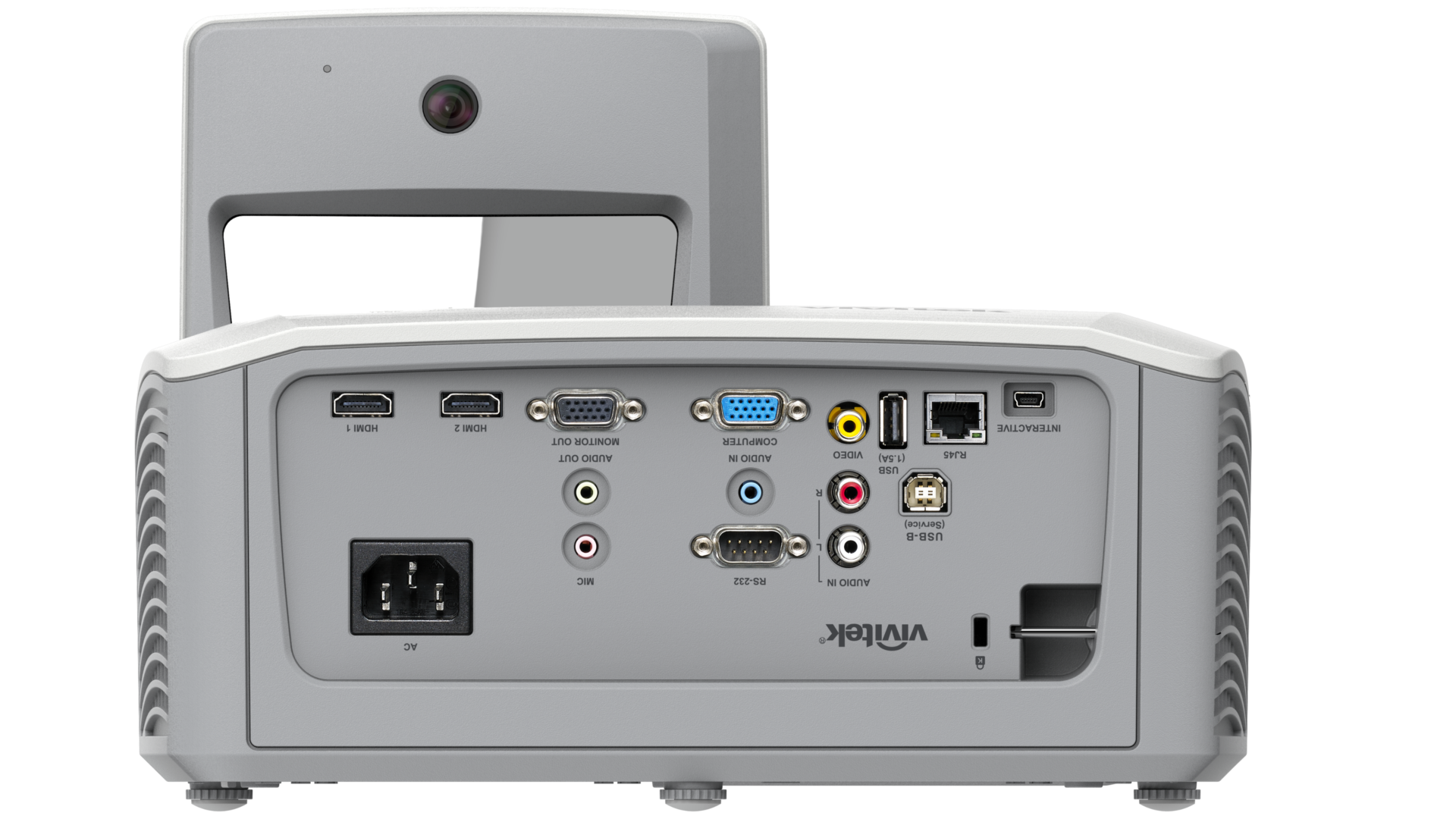

I/O Connection Ports
VGA-In (15pin D-Sub) (x1), HDMI Number of Ports v 2.0 (x2), USB B (Service), Microphone (Mini-Jack) , RS-232 , 3D-Sync , USB A (Power Only), USB miniB (Interactivity), VGA-Out (15pin D-Sub) , Audio-Out (Mini-Jack) , RJ45 , Composite Video , Audio-In (RCA) , Audio-In (Mini-Jack)
Dimensions (W x D x H)
287.7 x 374.5 x 122.6 mm (not including height of mirror )
Weight
5 kg
Noise Level
33dB / 29dB (Normal / Eco. Mode)
Remote Control P/N
5041841300
Standard Accessories
VGA Cable , IR interactive Pen / nbr (cannot input number; interactive USB cable is missing), AC Power Cord , User Manual (CD) , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
Optional Accessories
Interactive Pen P/N (5811126241-SVV), Spare Lamp P/N (5811123650-SVV), Universal Wall Mount (T/R 0.35) (%WM-3), Remote Control P/N (5041841300), 3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , 3D Mandatory Formats supported (top/bottom, right/left, frame sequential) , Keypad lock
Warranty
Education Warranty: 5 years projector / 3 years on lamp or 2.000 hours whichever comes first

Product Accessories

Accessories

Vivitek D7 Series

Remote control

Part Number: 5041841300

LB05P-D08A_Lamp_Photo_1_D751ST_D755WT_D755WTi_D755WTIR_DH758UST

Replacement lamp

Part Number: 5811123650-SVV
