D6510

Large Venue Presentation Solution for Demanding Video Applications

D6510

Designed for large venue installation applications, the Vivitek D6510 feature dual-lamp technology, interchangeable lenses and interchangeable color wheels to enhance demanding video applications. The Vivitek D6510 is designed to operate 24/7 delivering high brightness superb digital images. Intended for high-impact multimedia presentations, the Vivitek D6510 is unmatched in performance and functionalities.
Download Datasheet
Vivitek D6510_Right
Vivitek D6510_IO
Vivitek D6510_Top
Vivitek D6510_Right
Vivitek D6510_Left
Vivitek D6510_IO

Product Resources

Specifications

D6510

Native Resolution
XGA (1024 x 768)
Brightness
6500 ANSI Lumens
Contrast Ratio
3,000:1
Max. Supported Resolution
UXGA (1600 x 1200) @60Hz
Native Aspect Ratio
4:3
Lamp Life and Type
1,500/2,500 Hours (Normal / Eco. Mode), 280W x 2
Display Type
Single chip DLP® Technology by Texas Instruments
Chip Size
0.7” DMD
Throw Ratio
1.78 – 2.35:1 (Std lens)
Image Size (Diagonal)
40" – 500" (Std lens)
Projection Distance
1.42 – 24.35 m
Zoom Ratio
1.3x (Std lens)
Offset
Power Lens Shift
Keystone Correction
Vertical +/- 40°/Horizontal +/- 35°
Speakers
3W x 2 (Stereo)
Lens Shift Range
Lens Shift Range (Vertical: 0~50%, Horizontal: +/- 10%)
Video Compatibility
SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports
VGA-In (15pin D-Sub) , DVI-D , Component (5 BNC) (RGBHV) , RS-232 , VGA-Out (15pin D-Sub) , Audio-Out (Mini-Jack) , RJ45 , Component (YPbPr RCA x 3) , S-Video , Composite Video , Audio-In (RCA) (2), Audio-In (Mini-Jack) (3)
Dimensions (W x D x H)
508 x 389 x 195 mm
Weight
17 kg
Noise Level
39dB/34dB (Normal /Eco Mode)
Power
Supply: AC 100-240V Consumption: 580W (Eco. Mode), 710W (Normal Mode), <5W (Standby Mode)
Remote Control P/N
5041818400
Optional Accessories
Remote Control P/N (5041818400)
Warranty
Large Venue Warranty: 5 years projector / 1 year on lamp or 1.000 hours whichever comes first

Product Accessories

Accessories

VivitekD7_D8_D9_D5000 Series

Remote control

Part Number: 5041818400

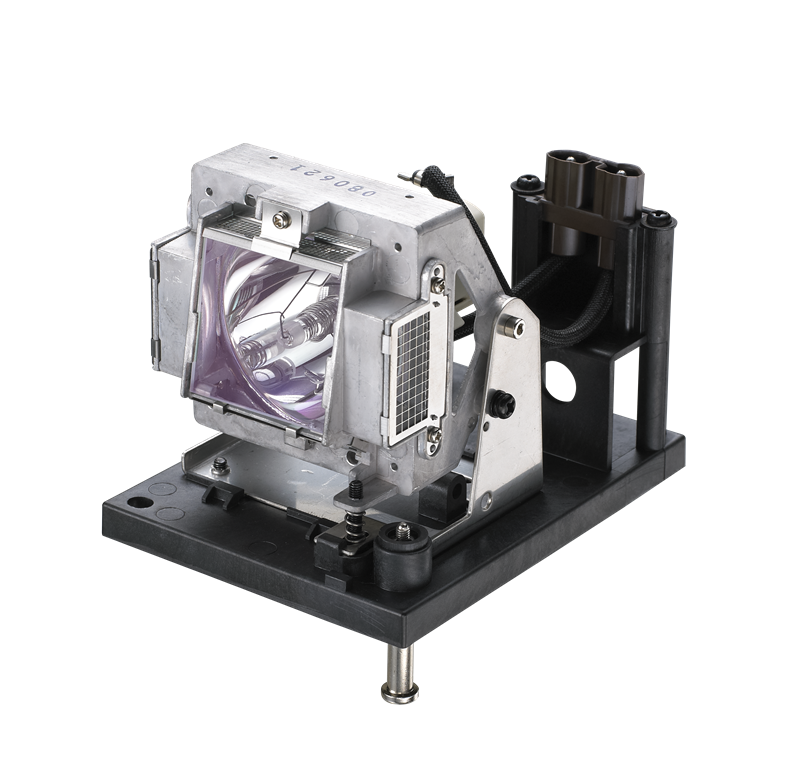

5811100818-S_Lamp_Photo_1_D6010_D6510

Replacement lamp

Part Number: 5811100818-S
